Pan Washer Head vs Standard Pan Head Screws: Which Is Better for Thin Panels and Plastic Enclosures?

Introduction: A 6-factor application-fit matrix compares bearing area, deformation risk, torque sensitivity, clearance, and washer reduction.



Screw head geometry looks simple until thin panels and plastic housings begin to fail. A standard pan head screw may be adequate for many general fastening tasks, but its smaller bearing area can concentrate clamp pressure on sensitive substrates. A pan washer head screw uses a wider integrated bearing surface to spread load, reduce local pressure, and sometimes remove the need for a separate washer. The choice affects deformation risk, assembly speed, cosmetic quality, and long-term joint reliability.



1. Why Screw Head Geometry Matters in Thin Panels and Plastic Housings

1.1 The Hidden Role of Bearing Surface

The bearing surface is the area under the screw head that presses against the assembled part. When that area is small, clamp force is concentrated. When that area is larger, the same general clamping action is spread over more surface. In thin sheet metal, concentrated pressure can cause indentation, oil-canning, pull-through, or local distortion. In plastic housings, it can create stress whitening, creep, cracking, boss damage, or cosmetic marks that appear only after tightening or repeated service.

1.2 Why Thin Materials Are More Sensitive to Clamp Pressure

Thin panels and plastic walls have less structural depth to absorb concentrated load. They may look stable during the first installation but deform after vibration, thermal cycling, repeated opening, or over-torque. In enclosure manufacturing, a failed fastening point can damage a larger visible housing, not just a small screw location. This is why head selection should be reviewed with the substrate, pilot hole, torque limit, surface finish, and serviceability requirement.

1.2.1 Common Deformation Patterns During Assembly

Common failure patterns include circular indentation under the head, radial cracks in plastic, pulled or dimpled sheet metal, washer marks on coated panels, stripped bosses, and loosened joints after reassembly. These failures usually come from a system mismatch. Head geometry can help, but it must work with the correct thread design and torque setting.



2. What Is a Standard Pan Head Screw

2.1 Basic Head Profile and Contact Area

A standard pan head screw has a rounded top and a relatively flat underside. It is widely used because it is familiar, easy to source, and suitable for many sheet metal, machine screw, and self-tapping applications. Its advantage is simplicity. It can provide clean seating where the material is thick enough, the torque is controlled, and the joint does not require a broader contact area.

2.2 Where Standard Pan Head Screws Perform Well

A standard pan head may be the better option when space is limited, the panel is thick enough to resist indentation, the screw is recessed in a designed boss, the surface is not cosmetic, or a separate washer is already specified. In automated assembly, a familiar head and drive combination can also support feeding and tool engagement. The limitation is that the head does not add the same built-in load-spreading effect as a washer head.

2.2.1 When Standard Pan Head Screws Reach Their Limits

The standard pan head can reach its limit when thin metal begins to dent before full seating torque is achieved, when a plastic housing shows surface whitening, or when repeated service cycles enlarge the hole. In those cases, a larger bearing surface, lower torque, different thread design, or redesigned boss may be needed.



3. What Is a Pan Washer Head Screw

3.1 Wider Integrated Bearing Surface

A pan washer head screw integrates a washer-like surface into the head geometry. The goal is to increase contact area without handling a separate washer. HIMORE as a example describes its pan washer head design as a way to distribute load evenly and reduce deformation under torque. That design logic is consistent with general fastening principles: when force is spread over a wider area, local pressure on the substrate can be reduced.

3.2 How Load Distribution Reduces Localized Pressure

Load distribution does not eliminate clamp force. It changes how that force is transferred into the panel or housing. In a thin metal panel, a wider contact area can reduce the chance of a circular dent or pull-through around the hole. In plastic, a wider head can lower compressive stress at the surface and reduce the chance that a small area carries too much load. This is especially relevant where the housing has cosmetic requirements or where the joint is opened for service.

3.2.1 Why Integrated Washer Geometry Can Simplify Assembly

A separate washer can protect a surface, but it adds another part to feed, position, inspect, and potentially lose. An integrated washer head can reduce part count and operator handling in suitable joints. The mandatory further-reading article supplied for this project connects one-pass fastening with lower waste by reducing extra operations and rework. That process advantage is strongest when the integrated head also meets the mechanical needs of the joint.



4. Thin Sheet Metal Applications: Dents, Pull-Through, and Surface Distortion

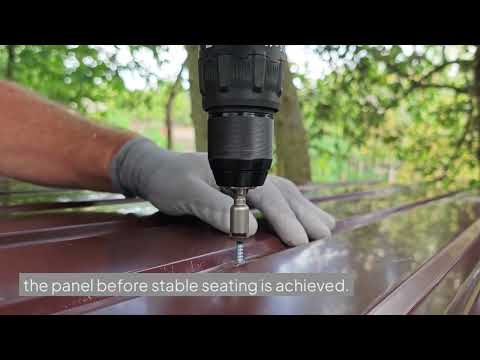

4.1 Why Thin Panels Deform Under Concentrated Clamp Load

Thin sheet metal can deform because the material around the hole carries the clamp load with limited stiffness. When torque rises, the area under a small head can sink, dish, or wrinkle before the joint reaches the desired condition. Surface coatings can also crack or mark if local pressure is high. A pan washer head can reduce this risk by increasing the bearing area, but engineers still need to validate the panel thickness, hole diameter, drive speed, and seating torque.

4.2 How Larger Contact Area Changes Pressure Distribution

Application Condition	Standard Pan Head Risk	Pan Washer Head Advantage
Thin telecom enclosure panel	Local indentation or pull-through near the hole	Wider bearing area helps distribute clamp pressure
Painted appliance panel	Visible circular mark or coating damage	Larger contact area can reduce concentrated surface stress
Electronics chassis	Loose seating if torque is reduced too far	Load spreading may allow stable seating with lower damage risk
Service access cover	Hole enlargement after repeated removal	Wider head can protect the bearing surface during reuse

4.2.1 Application Examples in Enclosures and Chassis

Telecom enclosures, appliance panels, electronics chassis, HVAC control boxes, and lightweight brackets often use relatively thin sheet materials. These assemblies need enough clamp load for stability but not so much local pressure that the panel is damaged. A pan washer head screw is often worth evaluating when the panel is thin, the surface is visible, or the product must withstand service access without a damaged hole.



5. Plastic Enclosures: Cracking, Creep, and Over-Torque Risk

5.1 Why Plastic Housings Respond Differently from Metal Panels

Plastic does not behave like thin steel. It can creep under sustained load, crack under stress concentration, soften with heat, and lose boss strength after repeated assembly. The screw thread, pilot hole, boss diameter, screw length, material grade, and driver torque all influence whether the joint survives. A pan washer head can lower surface pressure, but it cannot compensate for a boss that is too thin, a pilot hole that is wrong, or a torque setting above the strip-out limit.

5.2 How Head Geometry Interacts With Bosses and Pilot Holes

In plastic fastening, the boss normally carries thread engagement while the head clamps the surface. If the head is too small for the surface condition, visible damage can occur before the boss reaches a stable clamp condition. If the head is too wide for the molded feature, it may interfere with ribs, recesses, gasket lines, or adjacent components. Engineers should therefore evaluate both vertical thread engagement and horizontal bearing area.

5.2.1 Practical Checks Before Plastic-to-Metal Approval

Sample testing should include first installation, removal, second installation, thermal exposure, vibration or handling, and inspection for stress whitening or cracks. Torque should be set below the strip-out level with a practical safety margin. The Covestro thermoplastics guide is useful because it distinguishes insertion torque, tightening torque, and stripping torque, which are critical for avoiding plastic boss failure.



6. Application-Fit Matrix: Pan Washer Head vs Standard Pan Head Screws

6.1 Fit by Substrate and Assembly Condition

Selection Factor	Standard Pan Head	Pan Washer Head
Bearing surface	Moderate contact area	Larger integrated contact area
Thin metal deformation risk	Acceptable when panel is stiff or torque is low	Often lower risk when panel is thin or surface is cosmetic
Plastic surface stress	Depends heavily on boss and torque design	Can reduce surface compression at the head contact area
Part count	May require a separate washer in some joints	Can reduce washer handling in suitable designs
Space around the head	Usually more compact	Needs clearance for the wider head
Best fit	General fastening and thicker substrates	Thin panels, plastic housings, mixed-material assemblies, and visible surfaces

6.2 When a Standard Pan Head May Still Be Better

A standard pan head may still be preferable when the design has a narrow recess, when a separate washer is required for a specific locking function, when the panel is thick and stable, or when cosmetic surface pressure is not a concern. Pan washer head geometry should not be selected just because it appears stronger. The head must fit the available space, tooling, torque process, and service requirement.

6.2.1 Evidence Checklist for Head Geometry Approval

1. Confirm panel thickness, plastic grade, boss design, hole diameter, and surface finish.
2. Compare visible deformation after installation at low, nominal, and high torque settings.
3. Measure insertion torque, seating torque, strip-out torque, and removal behavior.
4. Check whether the wider head interferes with ribs, seals, recessed pockets, or adjacent parts.
5. Run repeated assembly and vibration exposure where service access or dynamic loading is expected.
6. Verify supplier consistency across sample and mass-production batches.



7. Engineering Checklist for Selecting Screw Head Geometry

7.1 Material, Torque, and Cosmetic Requirements

The head choice should begin with the failure mode that must be avoided. If the issue is surface indentation, a larger bearing area can help. If the issue is stripped threads, the priority may be thread design and pilot hole size. If the issue is corrosion, finish selection matters more than head width. If the issue is missing washers on the line, an integrated washer head can reduce handling risk. A clear failure-mode map prevents teams from treating one feature as a universal solution.

7.2 Supplier Customization and Production Consistency

HIMORE presents custom screw manufacturing, standard fastener categories, and surface treatment options on its site. For buyers, those signals are useful when a standard catalog screw does not fit the joint. However, customization is valuable only when it is tied to measured requirements. The supplier should be able to hold dimensional tolerance, head diameter, thread geometry, coating friction, and batch consistency from sample approval through production.

7.2.1 Sample Testing Before Final Release

Final release should be based on a representative assembly test. Engineers should inspect the surface under the head, the underside of thin panels, the plastic boss, the formed thread, and the joint after handling or vibration. A pan washer head screw should be approved because it reduces the target risk in the real joint, not because the integrated washer shape looks safer in isolation.

7.3 Production Release Criteria for Thin Panels and Plastic Housings

Release criteria should be written before the supplier sample arrives. For thin sheet metal, the criteria may include no visible dimpling at nominal torque, no pull-through at the high-side torque setting, no coating fracture around the head, and stable seating after handling. For plastic housings, the criteria may include no stress whitening, no radial boss cracks, no strip-out during second assembly, and no interference with ribs or gasket areas. Written criteria prevent a team from approving a screw based only on appearance.

7.4 How to Decide When the Wider Head Is Worth the Space

A pan washer head consumes more surface area than a standard pan head. That space is justified when it solves a measurable problem such as indentation, missing washer handling, visible surface marking, or weak load distribution on a thin substrate. It is less justified when the joint is deeply recessed, already uses a functional washer, or needs a compact head for clearance. The correct decision is therefore not head A versus head B in general, but which head reduces the dominant failure mode in the actual enclosure.

7.4.1 Separating Cosmetic, Structural, and Process Benefits

Some benefits are cosmetic, such as reducing visible marks on painted panels. Some are structural, such as reducing pull-through risk. Others are process-based, such as eliminating separate washer handling. A robust selection process separates these benefits and assigns evidence to each one. If a pan washer head screw is chosen, the release file should state whether the decision was driven by surface protection, clamp distribution, assembly efficiency, or a combination of these factors.



Frequently Asked Questions

Q1: Do pan washer head screws always prevent deformation?

A: No. They can reduce localized pressure by spreading load across a wider area, but deformation can still occur if torque is too high, the substrate is too thin, the pilot hole is wrong, or the plastic boss is poorly designed.

Q2: Are pan washer head screws better than standard pan head screws for plastic?

A: They can be better when surface stress or cosmetic marking is a concern. Plastic joints still require correct boss geometry, thread engagement, insertion torque, tightening torque, and strip-out margin.

Q3: Can head geometry reduce the need for separate washers?

A: In some assemblies, an integrated washer head can reduce or remove separate washer handling. This should be validated against the mechanical and service needs of the joint, because some washers provide functions beyond load spreading.

Q4: What should engineers test before approving screws for thin panels?

A: Engineers should test visible indentation, pull-through risk, seating behavior, torque margin, repeated assembly, vibration exposure, coating damage, and clearance around the head. The test should use production-intent panels and drivers.



Conclusion

The choice between pan washer head and standard pan head screws is a practical engineering decision. Standard pan heads remain suitable for many general assemblies, especially where material stiffness, space, and torque control are adequate. Pan washer head screws become more attractive when thin metal, plastic housings, visible surfaces, or washer-handling reduction make load distribution important.

For thin panels and plastic enclosures, the best decision is made by matching head geometry with substrate behavior, torque limits, hole design, service requirements, and supplier consistency. HIMORE offers one related example of a steel pan washer head self-tapping screw positioned for metal, plastic, and thin sheet applications, but procurement teams should approve any fastener through application-specific testing rather than head style alone.
